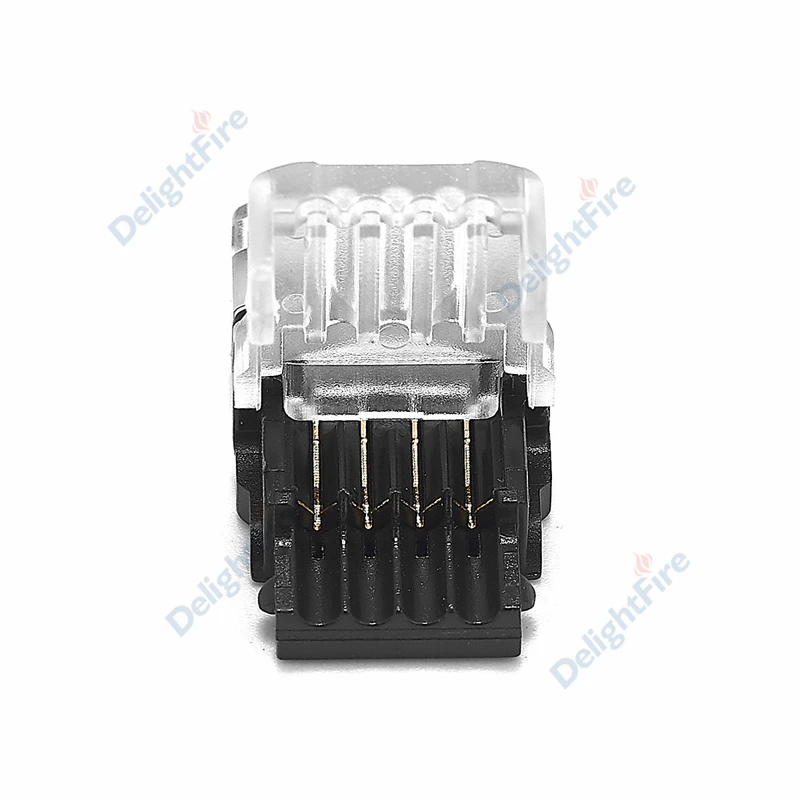

Solderless LED Connector 6 5 4 3 2 Pin LED Strip Connectors For RGB RGBW SMD 5050 WS2812B LED Strip Light Wire Connection

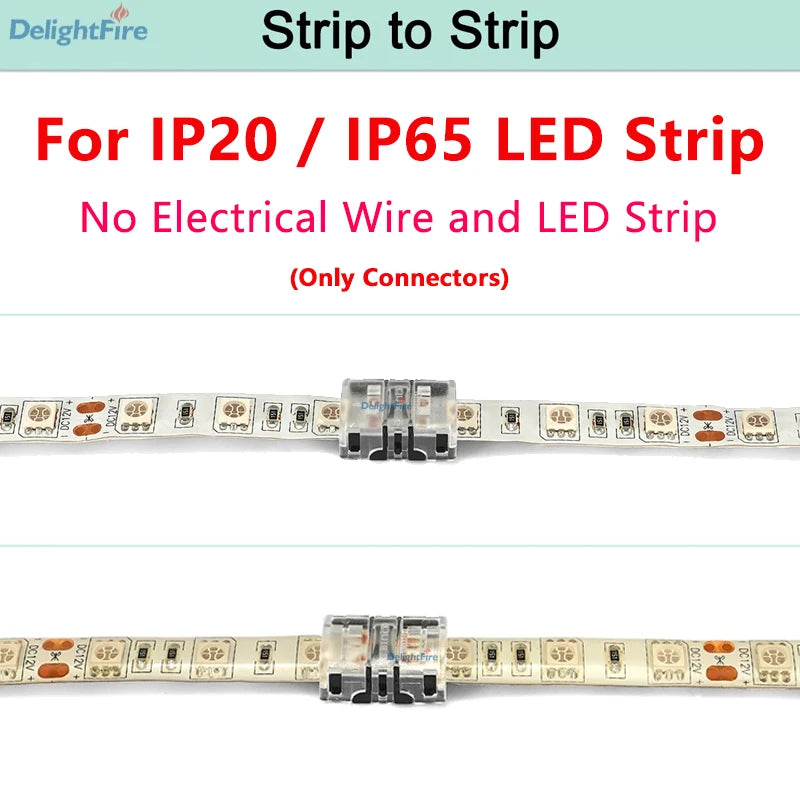

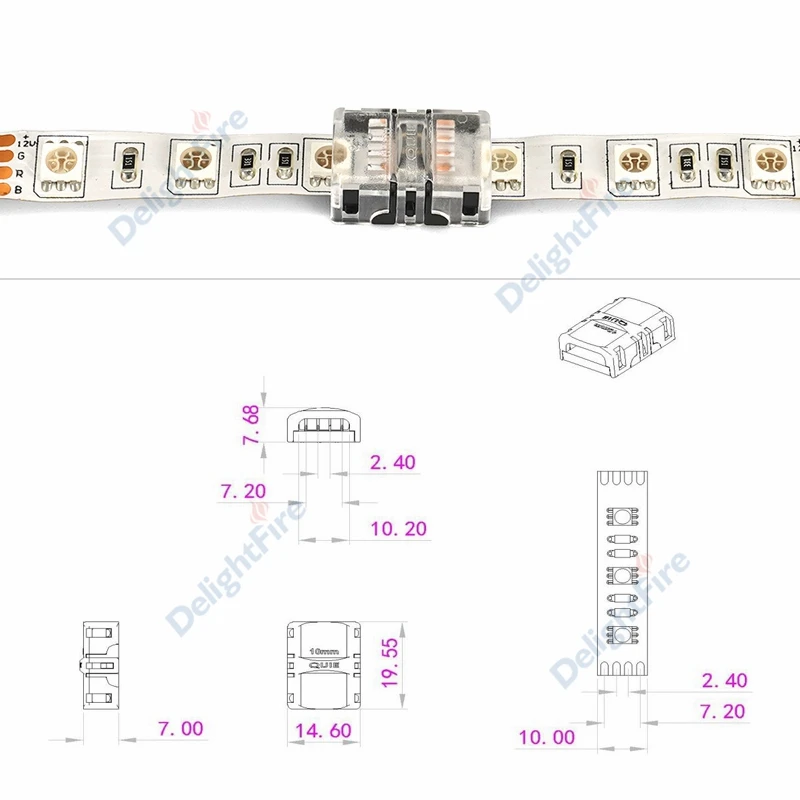

LED Strip to Strip / For 6pin 12mm IP65 / 5pcs

$7.84

Sale price $7.84 Regular price $15.68

Skip to product information

Solderless LED Connector 6 5 4 3 2 Pin LED Strip Connectors For RGB RGBW SMD 5050 WS2812B LED Strip Light Wire Connection

$7.84

Sale price $7.84 Regular price $15.68

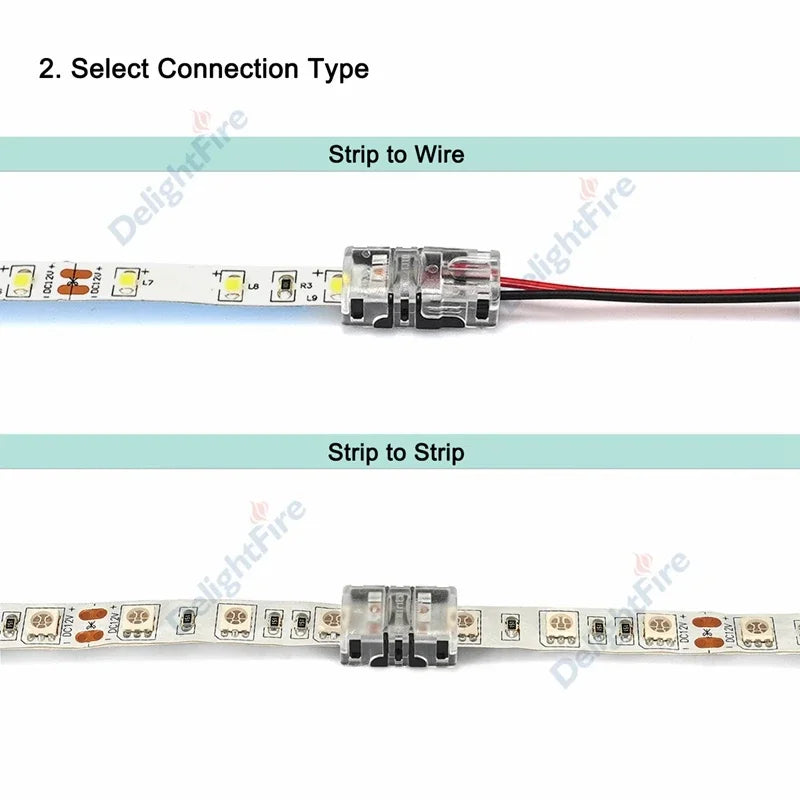

Color LED Strip to Strip LED Strip to Wire

Pins For 6pin 12mm IP65 For 2pin 5mm IP20 For 2pin 8mm IP20 For 2pin 8mm IP65 For 5pin 10mm IP65 For 5pin 12mm IP20 For 5pin 12mm IP65 For 6pin 12mm IP20 For 4pin 10mm IP20 For 4pin 10mm IP65 For 5pin 10mm IP20 For 2pin 10mm IP20 For 2pin 10mm IP65 For 3pin 10mm IP20 For 3pin 10mm IP65

Package Quantity 5pcs 10pcs

SPECIFICATIONS

Application: For 2812 3528 5050 Strip

Brand Name: DelightFire

Certificate: CE & RoHS

Certification: CE,RoHS

Choice: yes

Color: Black/Transparent

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Material: PC+Copper

Max Current: 5A

Model Number: LED Strip Connector

Origin: Mainland China

Voltage: 24V

Working Voltage: DC3~24V

semi_Choice: yes

All our products have been carefully selected and they are same as the picture which you see on our store. We already let the product color tend to the true as far as possible, however because of the monitor color error there more or less has a little bit of different. But definitely the product shape is the same as the picture.

Technical Data

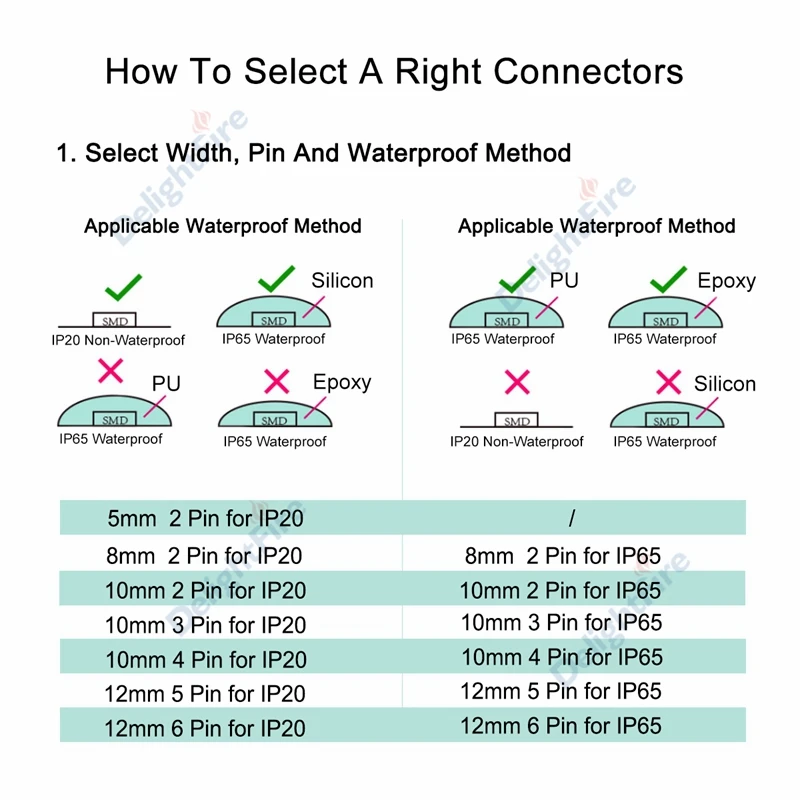

		IP20 or IP54/65 Silicon Waterproof	IP54/65 Epoxy/PU Waterproof
Electrical Data	Working Voltage	DC3~24V
	Max Current	5A
Pin Data	Pin Quantity	2/3/4/5/6 Pins
	Material	Copper
Workable Strip Data	Strip Light Color	Single Color / Dual Color / RGB / RGB+White / RGBW / RGB+Yellow / RGBWW / RGB+Dual Color
	IP Rating	IP20	IP65 / IP54
	Waterproof Type	Non-waterproof	One Side Glue Coating
	FPC Thickness	0.2~0.35mm
	LED Strip Height	/	>22 mm Include Glue
	LED Strip Width	5/8/10/12mm
	LED QTY / Meter	<=96LEDs(4/5/6pin), <=120LEDs(2/3pin), <=300LEDs(High Density)
Workable Wire Data (for strip to wire)	Wire Gauge	22~18AWG(2pin), 22~20AWG(3/4/5/6pin)
	Cross Section	0.34~0.72mm²(2pin), 0.34~0.5mm²(3/4/5/6pin)
	Wire O.D.	Φ1.5mm~Φ2.1mm
	Wire Type	Strand & Solid
Housing Data	Flame Retardant	UL94v~0
	Material	PC
	Heat Resistance	105℃
Ambient Data	Temperature	-20~50℃
	Environment	Indoor
Note: 1. For IP65/IP54 Strip Light, the IP rating will not be maintained after connection. 2. Due to silicon coating is softer, if IP65 type can not work well, please try connecting it with IP20 type.

Item Features:

100% brand new LED Strip Connectors

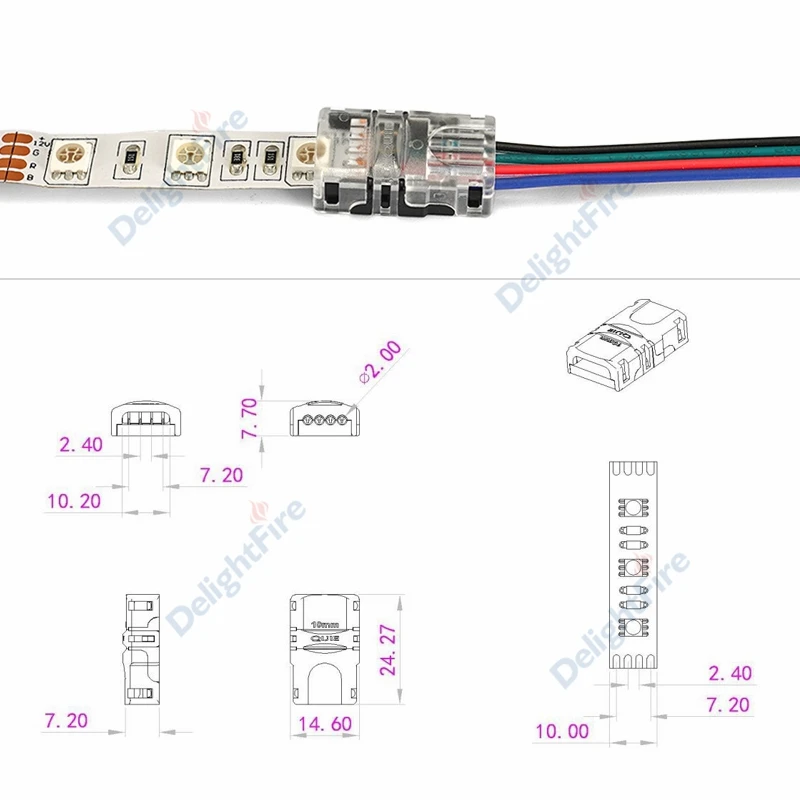

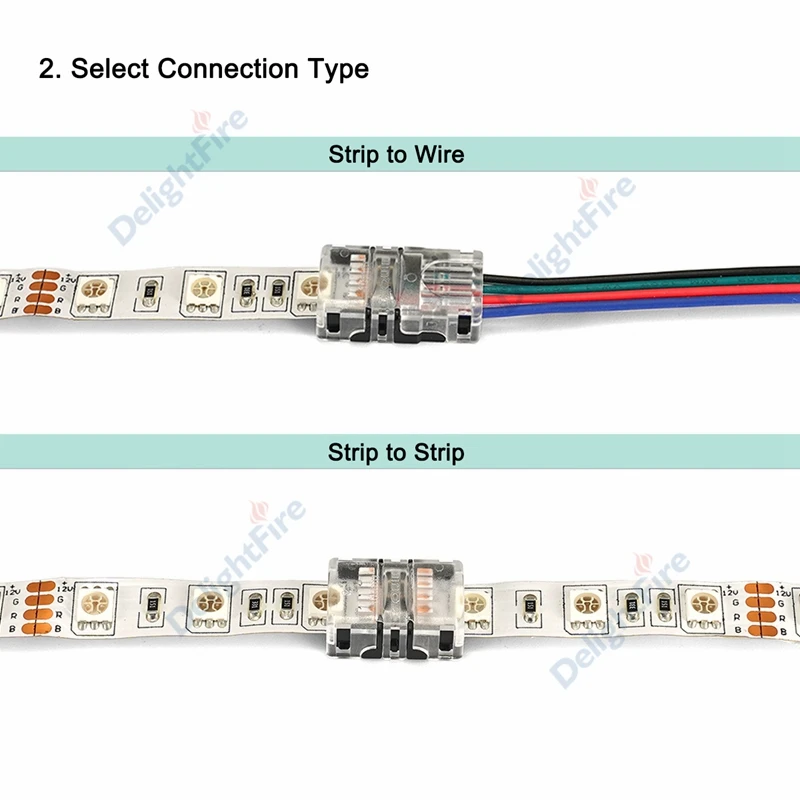

Strip to wires connection box

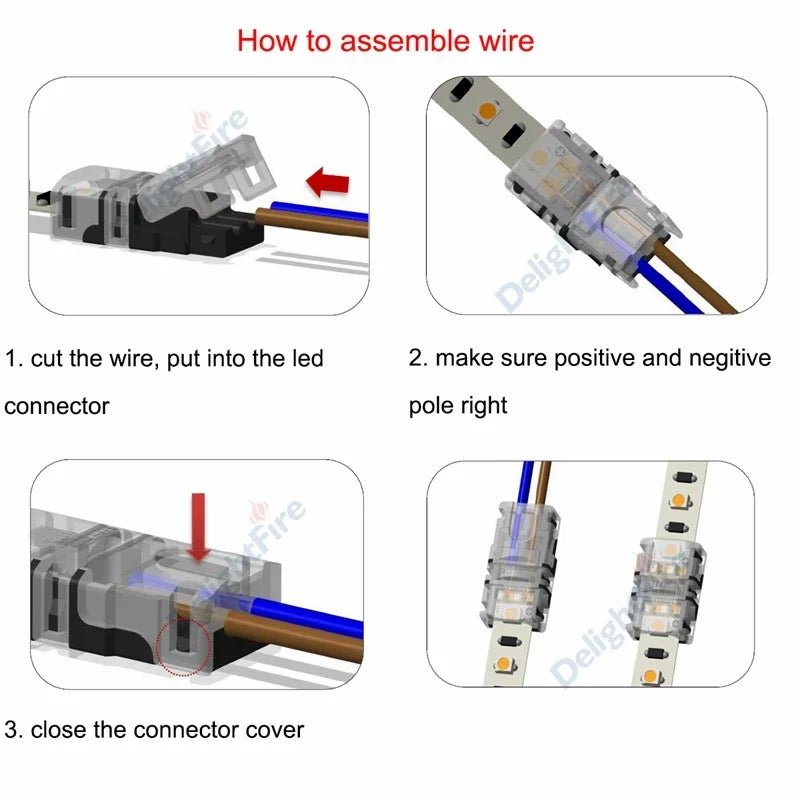

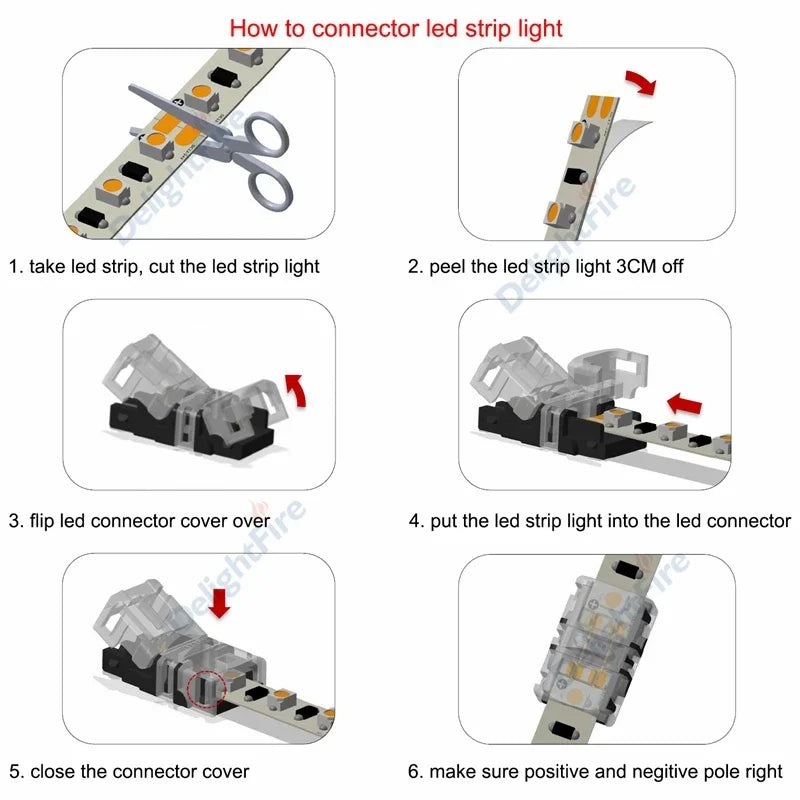

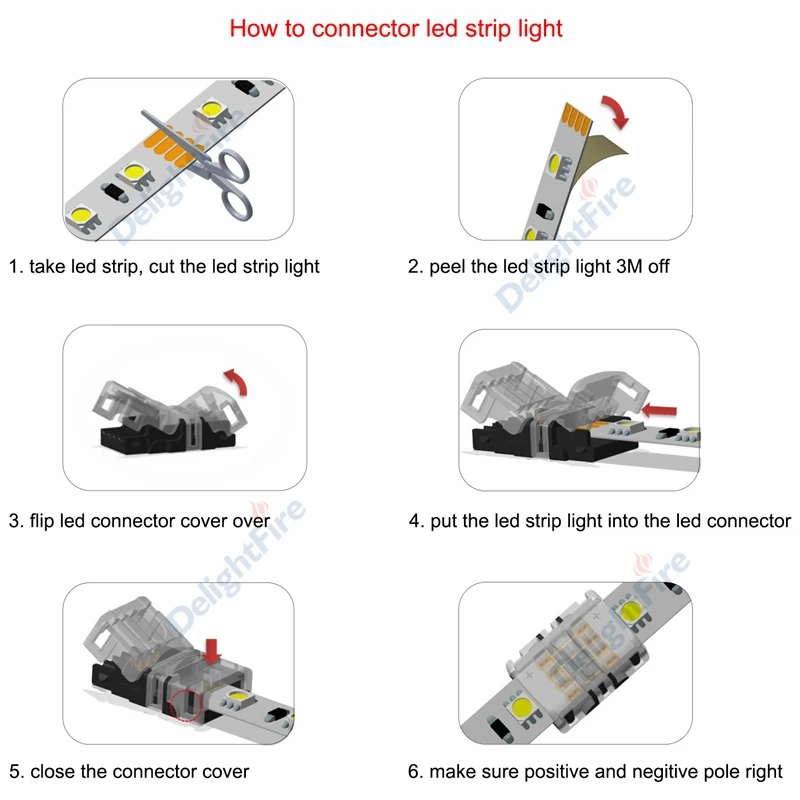

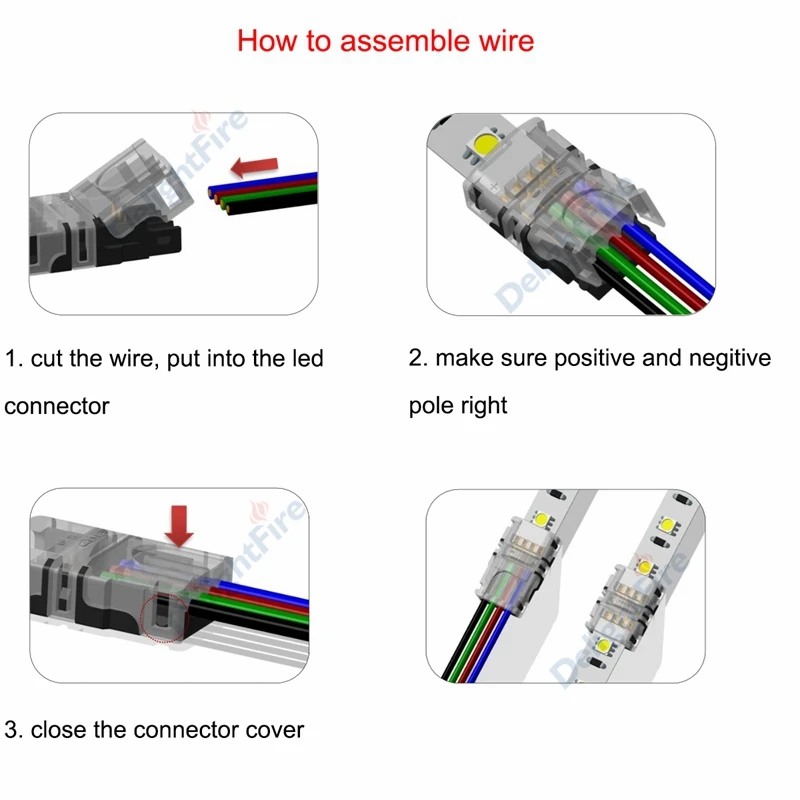

Easy to install, no soldering needed when use to re-connect LED strip and wires

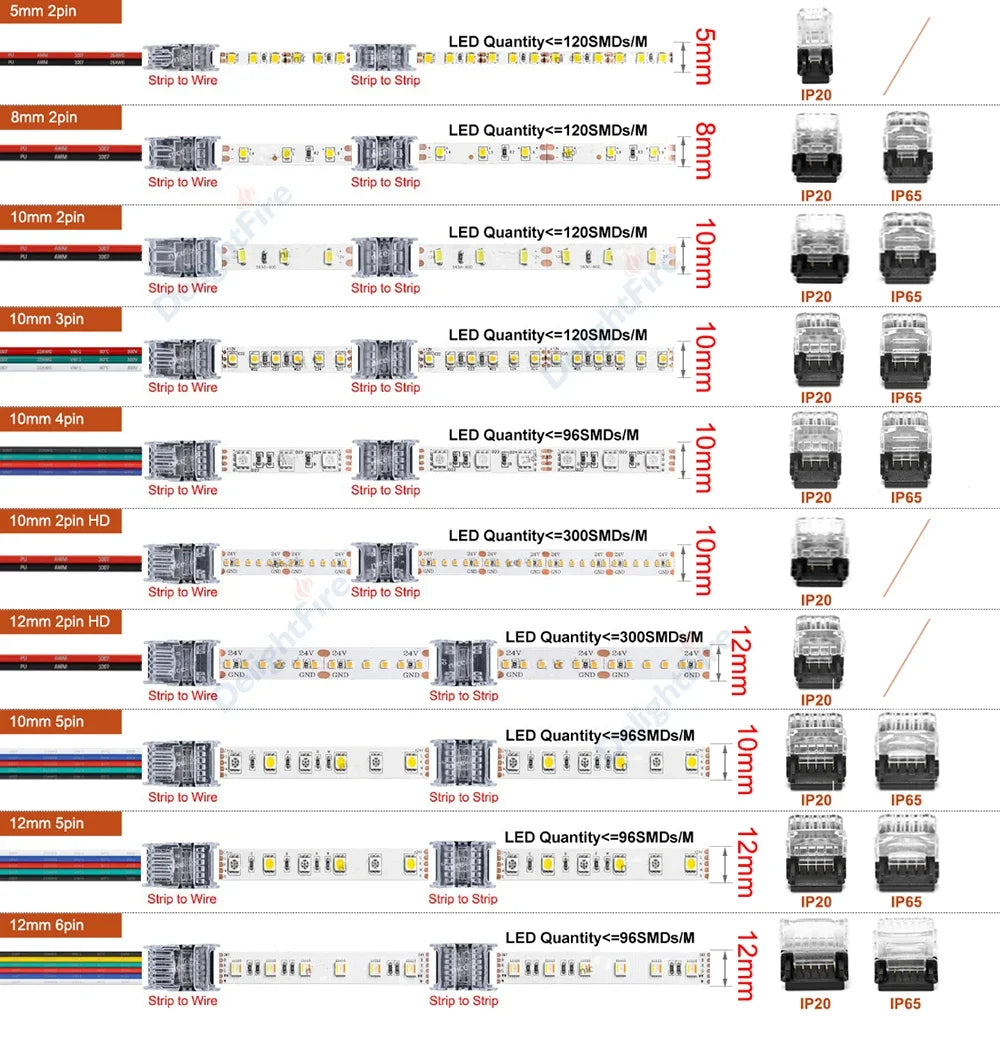

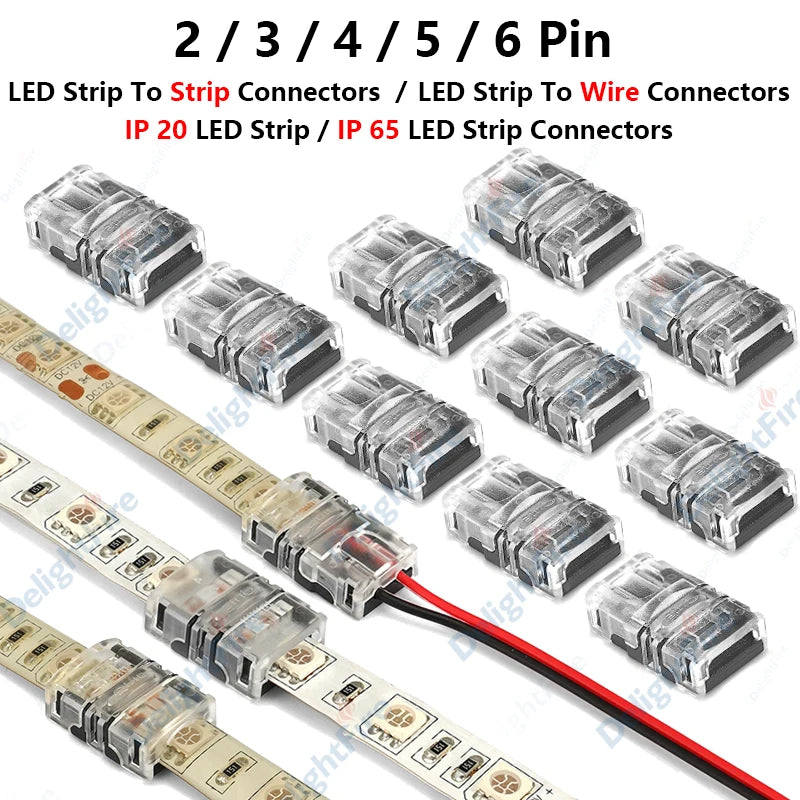

Connector Type: 2 pin 5/8/10mm| 3 pin 10mm | 4 pin 10mm | 5 pin 10/12mm | 6pin 12mm
Shell material: fireproof PC
Contact material: Copper
Rated voltage(V): 0-36V
Rated current(A): 5A
Fitted cable gauge(mm²): 0.35mm²-0.75mm²
Fitted cable gauge(AWG): 22AWG/20AWG/18AWG
Fitted cable OD(mm²): Φ1.5mm-2.1mm
Flame class: UL-94-V0
Working temperature: -20℃ - 60℃
Waterproof rate: IP20/IP65

Package Includes:

5 x LED Strip Connectors
